Cumulative distribution function

The cumulative distribution function (CDF) gives the probability that a random variable takes a value less than or equal to a specific point. It works for any type of random variable and is the foundation for calculating probabilities, generating random samples, and defining quantiles.

Definition

The cumulative distribution function of a random variable \(X\) is defined as:

ℹ️ CDF of a random variable

\[ F(x) = P(X \leq x), \quad \text{for all } x \in \mathbb{R} \]

The CDF accumulates probability from \(-\infty\) up to \(x\). It is defined for any real number \(x\), not just the values where \(X\) has positive probability.

Properties of the CDF

Every CDF, regardless of the type of random variable, satisfies the following properties:

  • Limits: \(\lim_{x \to -\infty} F(x) = 0\) and \(\lim_{x \to +\infty} F(x) = 1\).
  • Non-decreasing: if \(a < b\) then \(F(a) \leq F(b)\).
  • Bounded: \(0 \leq F(x) \leq 1\) for all \(x\).
  • Right-continuous: \(\lim_{h \to 0^+} F(x+h) = F(x)\).
  • Interval probability: \(P(a < X \leq b) = F(b) - F(a)\).

The last property is the most practically useful: you can compute the probability of any interval using just two evaluations of the CDF.

CDF for discrete random variables

For a discrete random variable with possible values \(x_1 < x_2 < \cdots\) and probabilities \(p_i = P(X = x_i)\), the CDF is:

ℹ️ CDF for discrete variables

\[ F(x) = \sum_{x_i \leq x} p_i \]

The CDF of a discrete variable is a step function: it stays flat between consecutive values and jumps at each \(x_i\) by exactly \(p_i\).

CDF of two coin flips

Flip a fair coin twice. Let (X) = number of heads. The PMF is:

  • \(P(X = 0) = 0.25\), \(P(X = 1) = 0.50\), \(P(X = 2) = 0.25\)

The CDF is:

  • \(F(x) = 0\) for \(x < 0\)
  • \(F(x) = 0.25\) for \(0 \leq x < 1\)
  • \(F(x) = 0.75\) for \(1 \leq x < 2\)
  • \(F(x) = 1.00\) for \(x \geq 2\)

So \(P(X \leq 1) = 0.75\): there is a 75% chance of getting at most one head.

Example icon

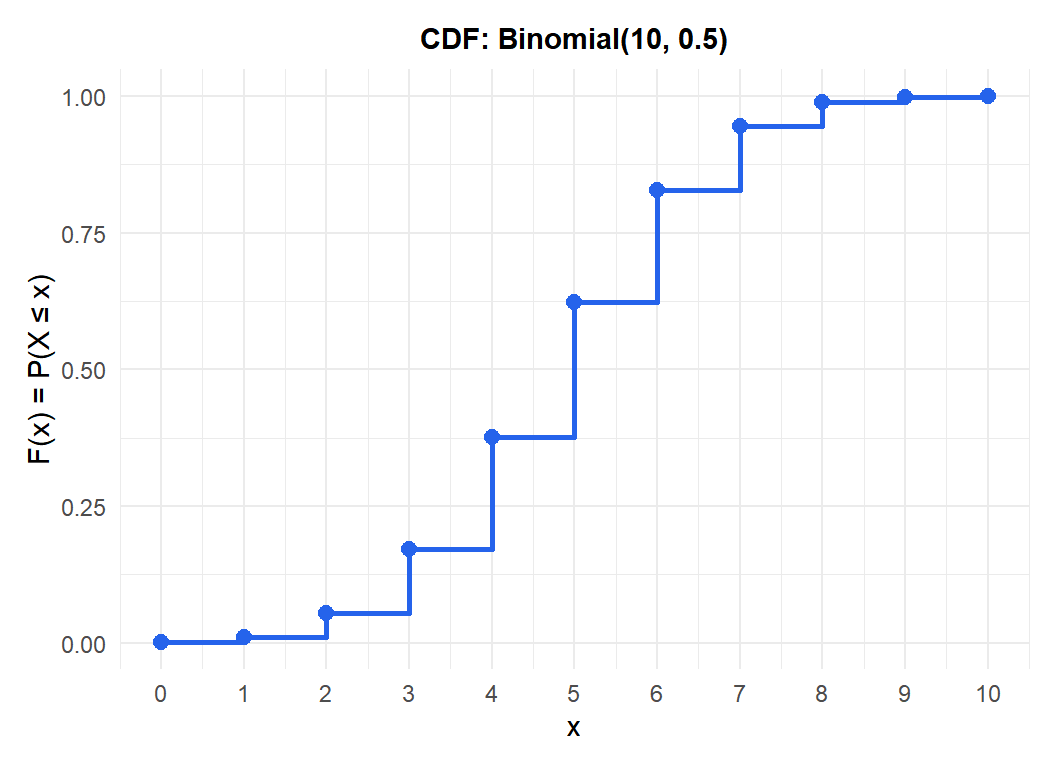

CDF of a Binomial(10, 0.5) distribution: a step function that jumps at each possible value

Figure 1: CDF of a Binomial(10, 0.5) distribution: a step function that jumps at each possible value

⚠️ In discrete variables, P(X < x) ≠ P(X ≤ x)

For discrete random variables, the strict and non-strict inequalities are not the same:

\[P(X < 2) = F(1) = 0.75 \neq P(X \leq 2) = F(2) = 1.00\]

The difference is exactly \(P(X = 2) = 0.25\). This distinction disappears for continuous variables, where \(P(X = x) = 0\) for any single point, but for discrete variables it matters and is a common source of errors in exam calculations.

CDF for continuous random variables

For a continuous random variable with probability density function \(f(x)\), the CDF is:

ℹ️ CDF for continuous variables

\[ F(x) = \int_{-\infty}^{x} f(t)\, dt \]

The CDF is a smooth, non-decreasing curve from 0 to 1. The relationship between PDF and CDF is:

\[f(x) = \frac{d}{dx} F(x)\]

The PDF is the derivative of the CDF, and the CDF is the integral of the PDF.

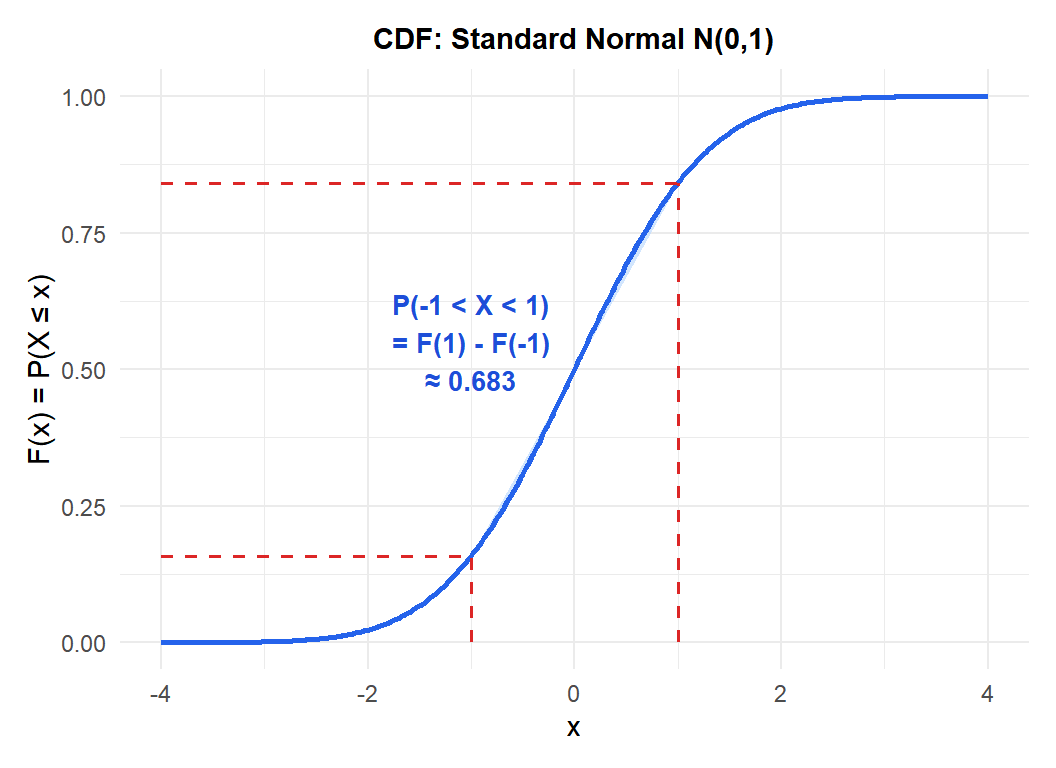

CDF of N(0,1): the shaded area between -1 and 1 equals F(1) - F(-1) ≈ 0.683

Figure 2: CDF of N(0,1): the shaded area between -1 and 1 equals F(1) - F(-1) ≈ 0.683

Using the CDF to calculate probabilities: server response time

A web server’s response time follows an exponential distribution with mean 200 ms, so (\lambda = 1/200).

The CDF is \(F(x) = 1 - e^{-x/200}\) for \(x > 0\).

  • Probability of responding in under 100 ms: \(F(100) = 1 - e^{-0.5} \approx 0.393\)
  • Probability of responding in under 500 ms: \(F(500) = 1 - e^{-2.5} \approx 0.918\)
  • Probability of taking between 100 and 500 ms: \(F(500) - F(100) \approx 0.918 - 0.393 = 0.525\)

All three answers come from two evaluations of the CDF.

Example icon

The inverse CDF: quantile function

The quantile function (or inverse CDF) is \(F^{-1}(p)\): it gives the value \(x\) such that \(F(x) = p\).

\[Q(p) = F^{-1}(p) = \inf\{x : F(x) \geq p\}\]

This is how percentiles and quantiles are defined formally. The median is \(Q(0.5)\), the first quartile is \(Q(0.25)\), and so on.

💡 The quantile function is essential for simulation

To generate random samples from any distribution, you only need its quantile function and a uniform random number generator. The inverse transform method works as follows: if \(U \sim \text{Uniform}(0,1)\), then \(X = F^{-1}(U)\) has exactly the distribution with CDF \(F\). This is the basis for most random number generation in statistical software.

CDF for mixed random variables

Mixed random variables have a CDF that combines jumps (from the discrete component) with smooth sections (from the continuous component). The CDF is still right-continuous and non-decreasing, but it is neither a pure step function nor a smooth curve.

Mixed CDF: insurance claims

An insurance policy pays zero with probability 0.6 (no claim filed) and a positive amount following an exponential distribution otherwise. The CDF is:

  • \(F(0) = 0.6\) (jump of 0.6 at zero)
  • \(F(x) = 0.6 + 0.4(1 - e^{-\lambda x})\) for \(x > 0\) (smooth exponential rise)

The CDF starts at 0, jumps to 0.6 at \(x = 0\), then increases smoothly to 1.

Example icon
